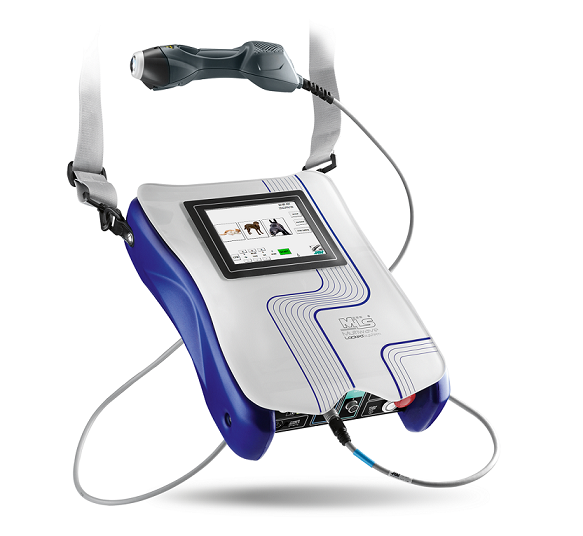

Mphi Equine

A personalised device for treating conditions affecting horses effectively. A new frontier in laser therapy for horses


A specific device for treating the health problems of horses easily and effectively thanks to a series of therapeutic programmes designed to help the vet in choosing the most suitable. Among innovative veterinary equipment, Mphi Equine is a customized solution for facing conditions in horses and equine.

It reaches all parts of the body easily and accurately and transmits the high quality energy of the impulse onto a precise Target Area of 5 cm diameter, an optimal surface area for ensuring an excellent therapeutic result. In fact, the size of the illuminated area, makes it possible to activate ample volumes of tissue evenly, for example muscular fasciae or whole joints. This enables a rapid response in the structures involved and thanks to its bio-stimulating effects, therapy with the MLS® pulse only takes a few minutes.

An added benefit: the multidiodic applicator CHARLIE which offers the advantage of treating large areas of the body.


Technical features

  • Multidiodic applicator Charlie with optical group composed of 3 MLS® sources - power up to 3.3 W - Peak Power 3 x 25 W
    Target Area Ø 5 cm highlighted by high-efficiency red light LEDs
  • Handpiece with optical group composed of 1 MLS® source - power up to 1.1 W - Peak Power 25 W
    Target Area Ø 2 cm highlighted by high-efficiency red light LEDs
  • High resolution LCD colour touch screen user interface
  • Simultaneous management of two independent channels
  • 18 pre-settled programmes for dog and cat
  • 21 pre-settled programmes for horse
  • Possibility to customize every treatment parameter
  • Personal area to save custom protocols
  • MLS® modulation in CPW and FPW mode (Synchronized emission of Continuous Pulsed Waves and Frequenced Pulsed Waves)
  • Modulation frequency from 1 to 2000 Hz with 1 Hz steps
  • Power level 25%, 50%, 75% and 100%
  • Fixed duty cycle at 50% or variable
  • Treatment duration from 1” to 99’59” with 1” steps
  • Automatic calculation of the emitted energy according to the settled parameters

Alarms and safety features

  • Laser emission warning light
  • Interlock
  • Acoustic signal selectable by operator
  • Date and time
  • Password to operate the device
  • Language option
  • Ready to be connected to the remote Laser emission signalling device

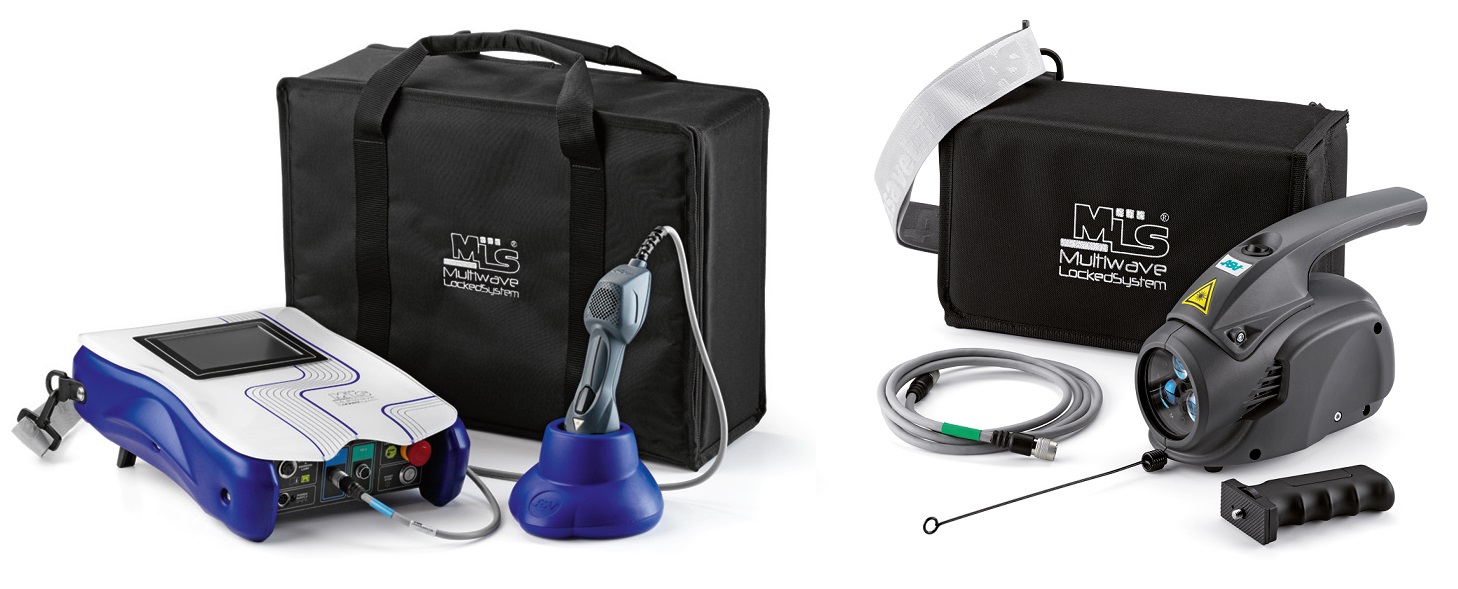

Included Accessories

  • N° 2 Laser Safety Goggles
  • Unit carrying case
  • Table handpiece holder
  • Shoulder strap for portable use

Size and weight

  • Mphi Vet 36 x 28 x 10 cm; 3 kg
  • Charlie 11 x 16 x 25 cm; 1 kg

Power supply

  • Lithium polymer battery
  • External power supply 18Vdc 50VA
