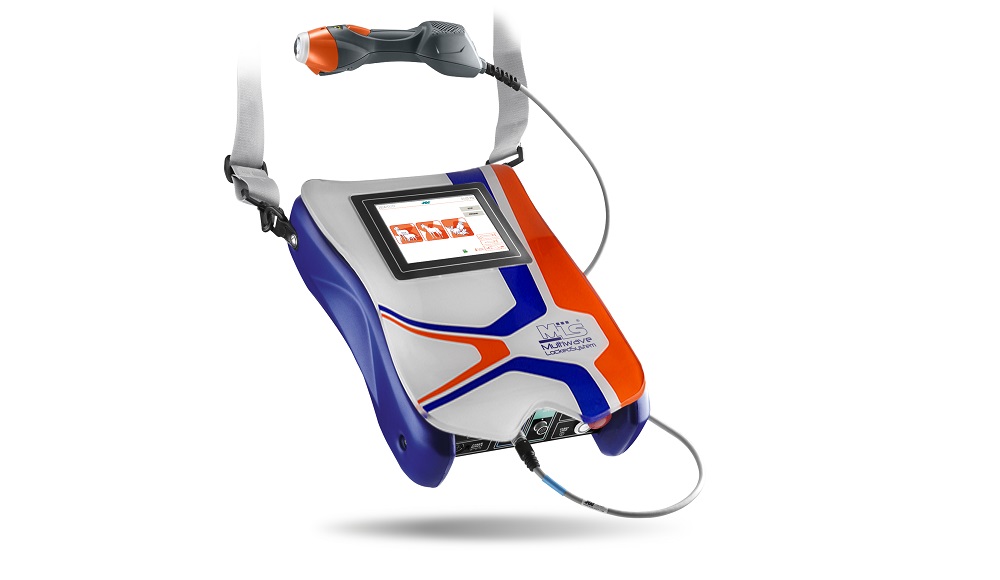

Mphi Vet Orange

Even more powerful and more personalised: the latest generation device for MLS® Laser Therapy, among the latest state of the art veterinary therapeutic lasers


Peak power of 75 W and average power up to 1.2 W: this is the additional value of Mphi Vet Orange, the new device for MLS® Laser Therapy result of research carried out by ASAlaser. The qualities already present in Mphi Vet – ease of use and portability – now become orange to achieve new goals. The new peak power and average power levels are used to their best advantage thanks to the synchronisation of the emissions (continuous/frequency and pulsated), enabling them to reach deep into the tissues and ensuring total safety.

Acting on the pain in a more immediate way, enhancing the photomechanical effect, speeding up the anti-oedema effect and promoting the activation of cellular repair processes is made even easier.

Specific software, with predefined protocols for treating CATS, DOGS, EQUINE and EXOTIC ANIMALS, allows one to modify parameters in order to set treatment modes for an ever more customized veterinary treatment.

Technical features

  • Handpiece with optical group composed of 1 MLS® source - with power up to 1.2 W - Peak Power 75 W
    Target Area Ø 2 cm highlighted by high-efficiency red light LEDs
  • High resolution LCD colour touch screen user interface
  • Simultaneous management of two independent channels
  • 20 pre-settled programs for Dogs and Cats
  • 21 pre-settled programs for Equine
  • 41 pre-settled programs for Exotic Animals parted in Reptiles, Birds and Mammals
  • Program section for Laser puncture
  • Program section for Intraoral pathologies
  • Possibility to customize every treatment parameter
  • Personal Area to save custom protocols
  • MLS® modulation in CPW and FPW mode (Synchronized emissions of Continuous Pulsed Waves and Frequenced Pulsed Waves)
  • Modulation frequency from 1 to 2000 Hz with 1 Hz steps
  • Power level 25%, 50%, 75% and 100%
  • Variable or fixed duty cycle
  • Treatment duration from 1” to 99’59” with 1” steps
  • Automatic calculation of the emitted energy according to the settled parameters

Alarms and safety features

  • Laser emission warning light
  • Interlock
  • Acoustic signal selectable by operator
  • Date and time
  • Password to operate the device
  • Language option
  • Ready to be connected to the remote Laser emission signalling device

Included Accessories

  • Laser puncture kit
  • Light guide for Intraoral Pathology Treatment
  • N° 2 Laser Safety Goggles
  • Unit carrying case
  • Table handpiece holder
  • Shoulder strap for portable use

Size and weight

  • 36 x 28 x 10 cm; 3 kg

Power supply

  • Lithium polymer battery
  • External power supply 18Vdc 50VA

Optional accessories

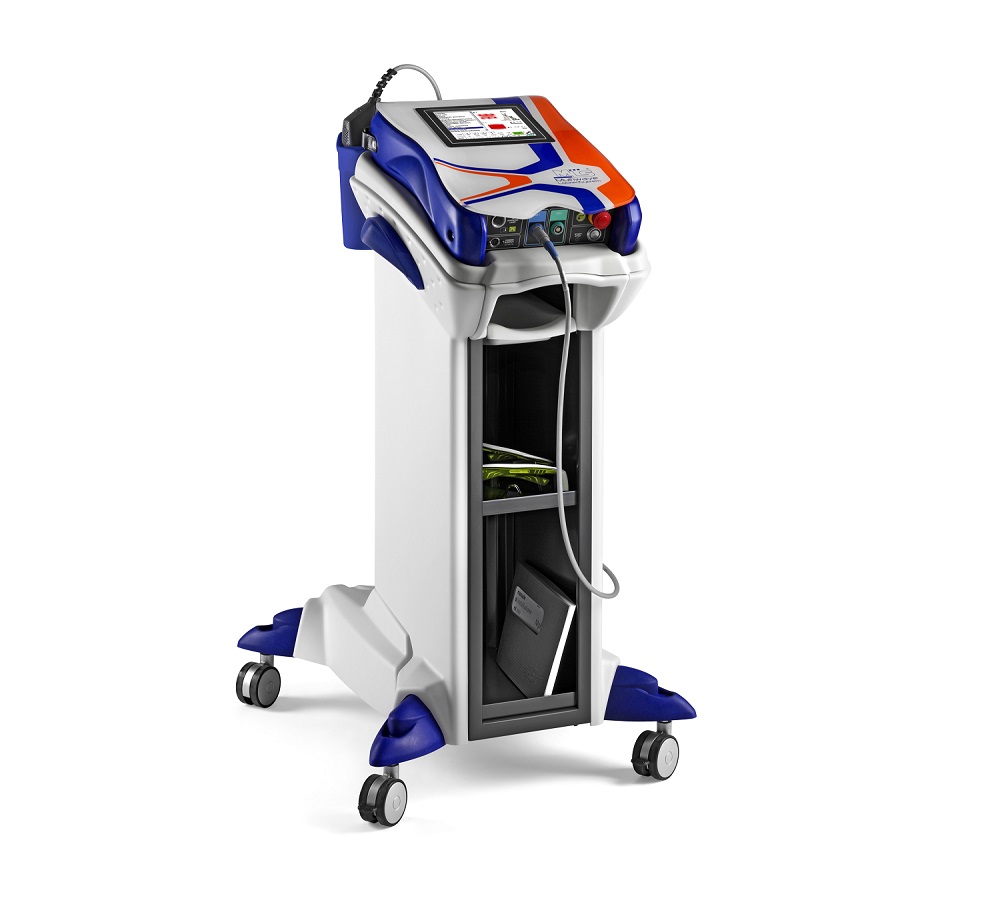

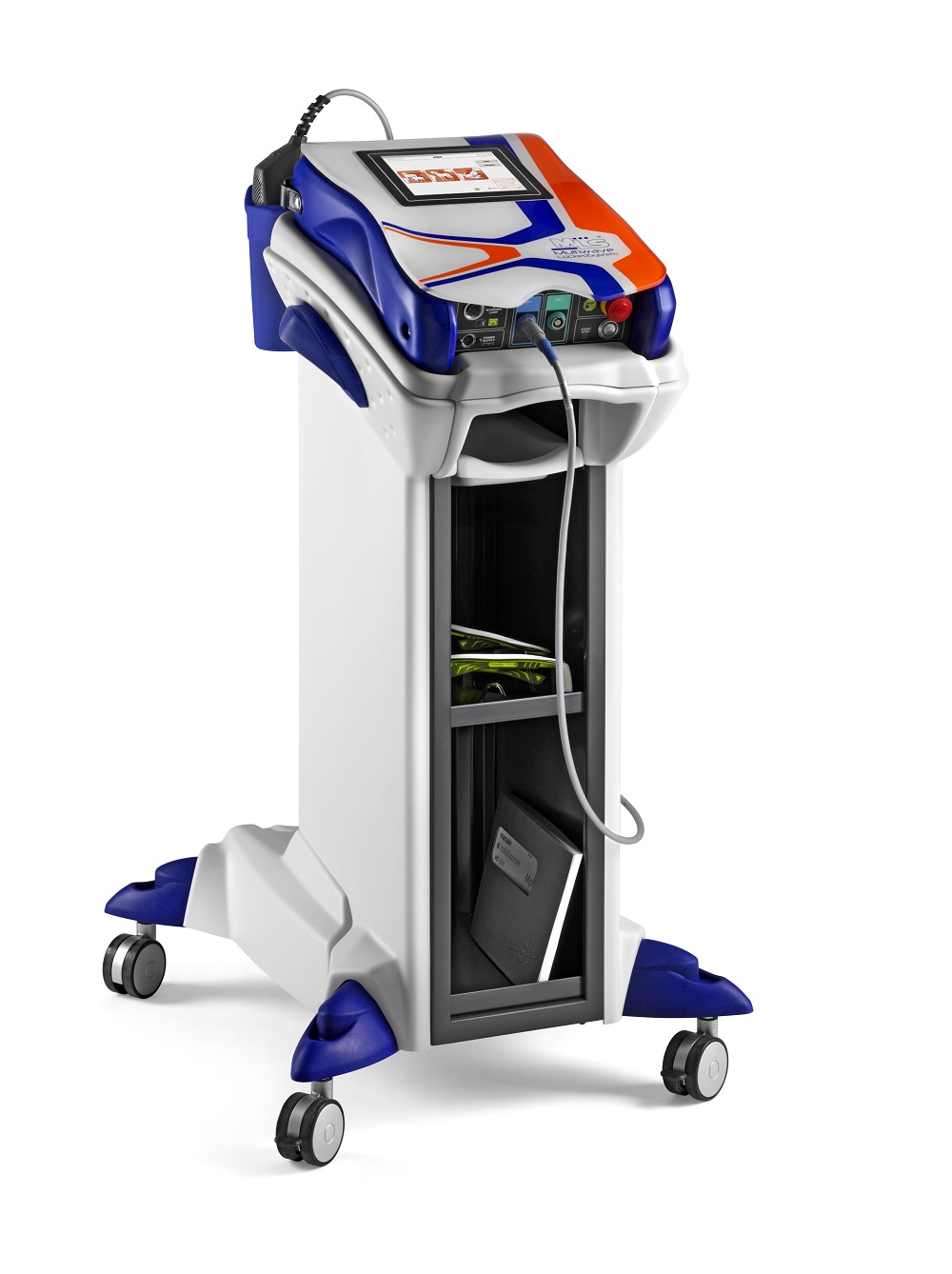

  • Unit carrying trolley
    63 x 54 x 85 cm; 17 kg

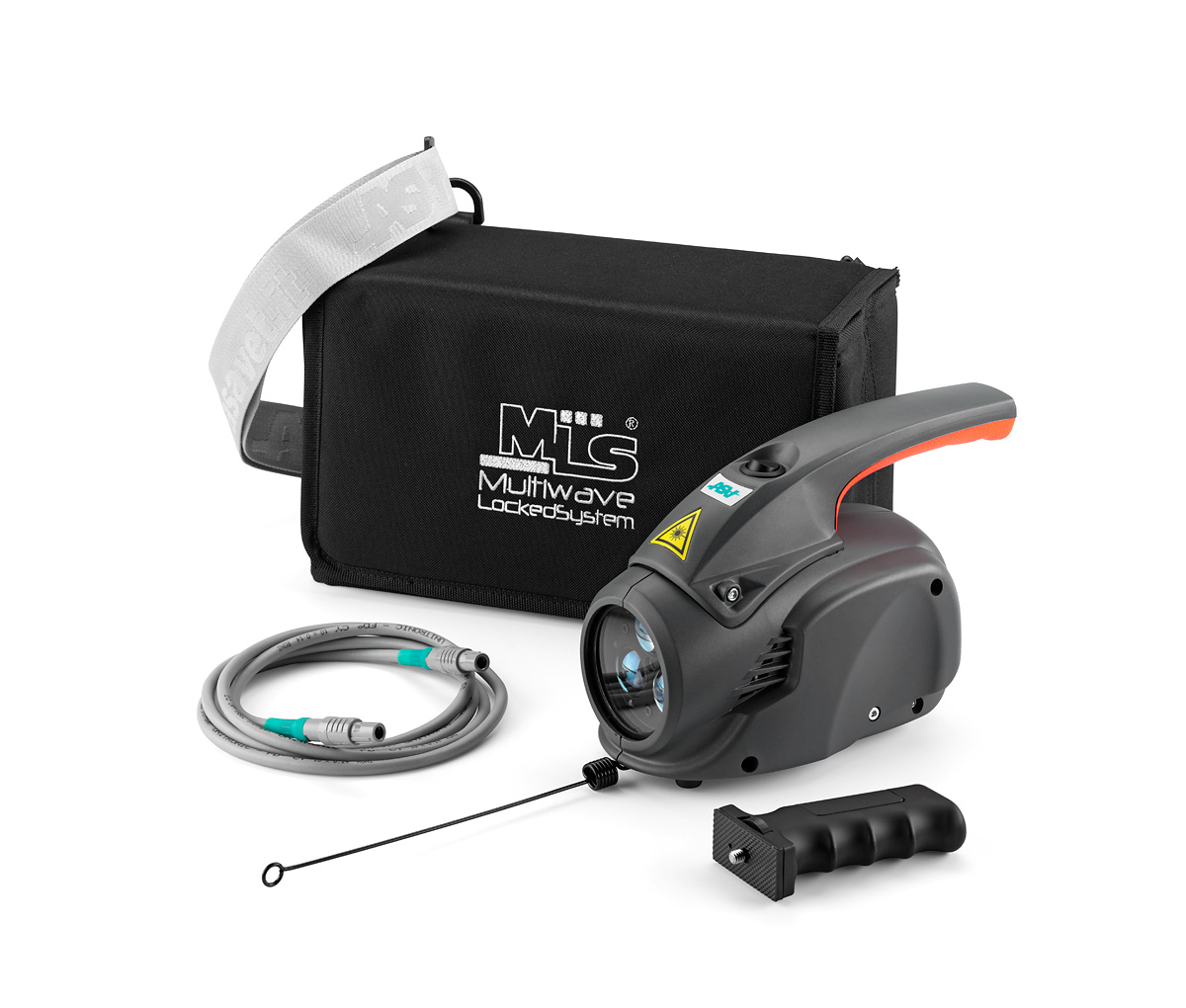

  • Multidiode applicator Charlie Orange
