M-VET

The MLS® Pulse enhanced through a new technology

Effectiveness in animal health

M-VET collects the scientific and technological know-how of over thirty years of ASA Research and Development in a new generation of therapeutic devices branded ASAveterinary, entirely dedicated to animal health.

The benefits of the MLS® synchronised impulse are now enhanced through an optical fibre technology, which allows conveying higher intensity energy packets inside the tissues, in total safety.

M-VET treatment:

  • exerts a significant inhibitory action on the production of pro-inflammatory molecules
  • produces short and long-term analgesic effects, allowing a significant and progressive function recovery
  •  improves the quality of the newly formed tissue and accelerates healing times

M-VET 3D

Tech Plus

Safety, homogeneity of treatment, peak power and ergonomics are just a few of the features which ensure M-VET is the top-quality product in the field of veterinary therapies.

  • Enhanced MLS®
  • Optical fibre
  • Back-up System
  • Quality of the materials
  • Game Changer Technology

Software

The innovation of M-VET extends to the user interface, equipped with a 10.1" high brightness touch screen and a latest generation software for an unprecedented user experience.
Easily upgradeable via USB port, thanks to its flexibility it fits to the use experience of the different users and includes predefined protocols dedicated to the care of dogs, cats, horses and exotic animals which are implemented according to the selected:

  • anatomic area
  • pathology of interest
  • patient's characteristics
  • clinical phase


Design

International success for M-VET, chosen by the Permanent Design Observatory of the ADI (Association for Industrial Design) for publication in the ADI Design Index 2021, second volume of the two-year cycle that gathers the pre-selected products for the Compasso d’Oro ADI Award 2022.

Technical features

  • Laser source with impulse in MLS® mode up to 3.6W
  • Peak power outside handpiece: 270W
  • MLS® modulation in CPW and FPW (synchronised emission of Continuous Pulsed Wave and Frequenced Pulsed Wave)
  • MLS® pulse modulation frequency from 1 to 2000 Hz in 1Hz steps
  • Power level from 1% to 100%
  • Lens with target area highlighted by high efficiency red light LEDs
  • Automatic recognition of the lens
  • 10.1" high brightness LCD touchscreen display
  • Intelligent back-up system
  • Pre-set programs for pets, horses, reptiles, birds and exotic mammals
  • Programs section for laser puncture
  • Programs section for diseases of the oral cavity
  • Viewing treatment images
  • Possibility of customising each treatment parameter
  • Reserved area to save personal protocols
  • Treatment time from 1" to 29'59" in steps of 1"
  • Automatic calculation of the energy emitted according to the parameters set
  • Treatment log
  • Usage statistics

Alarms and safety equipment

  • Laser emission warning light
  • Interlock
  • Acoustic signal adjustable by the operator
  • Date and time
  • Password to operate the device
  • Language option
  • Ready to be connected to the remote Laser emission signalling device

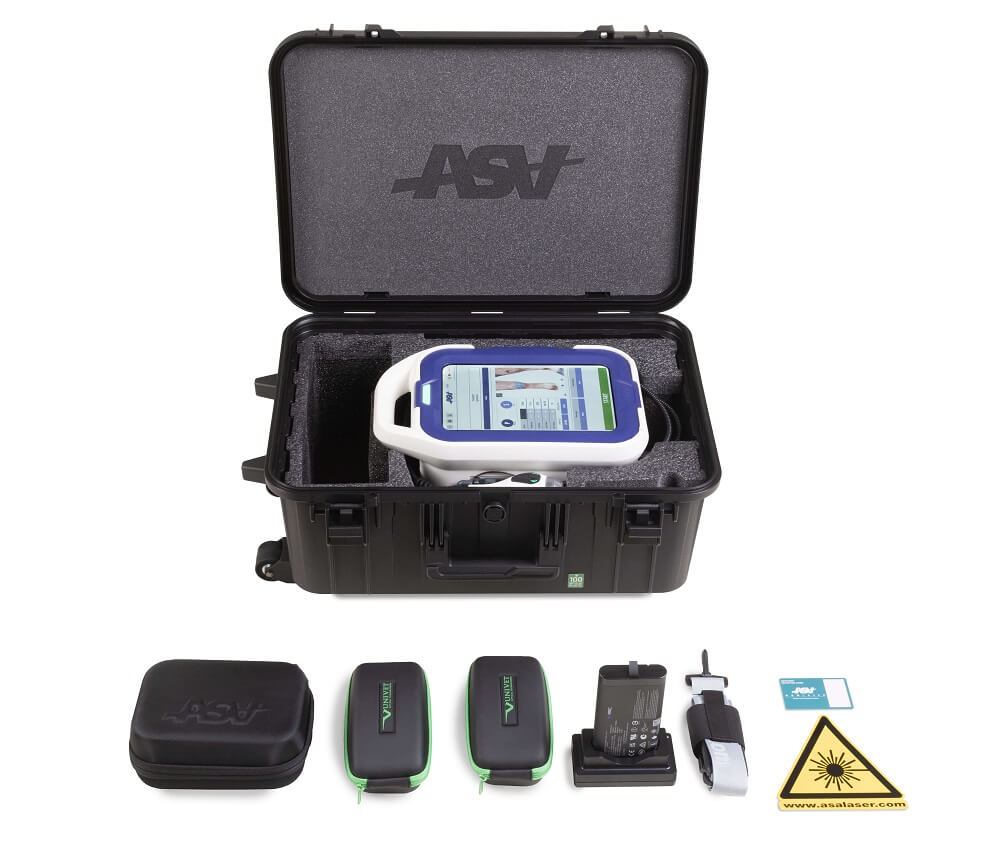

Accessories provided

  • 4 lenses: Ø 4 mm, Ø 8 mm, Ø 2 cm, Ø 5 cm

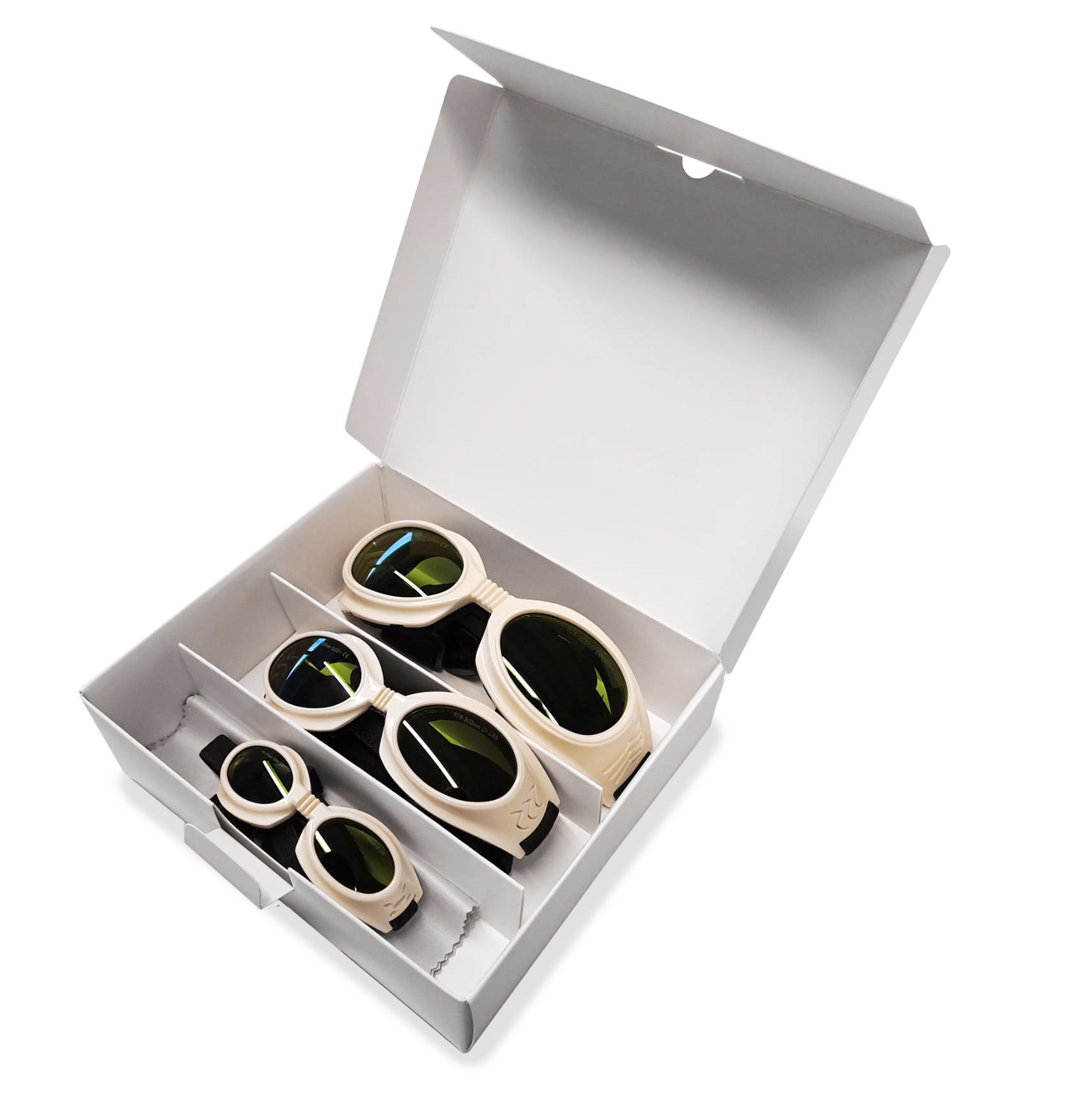

  • N° 2 Laser Safety Goggles

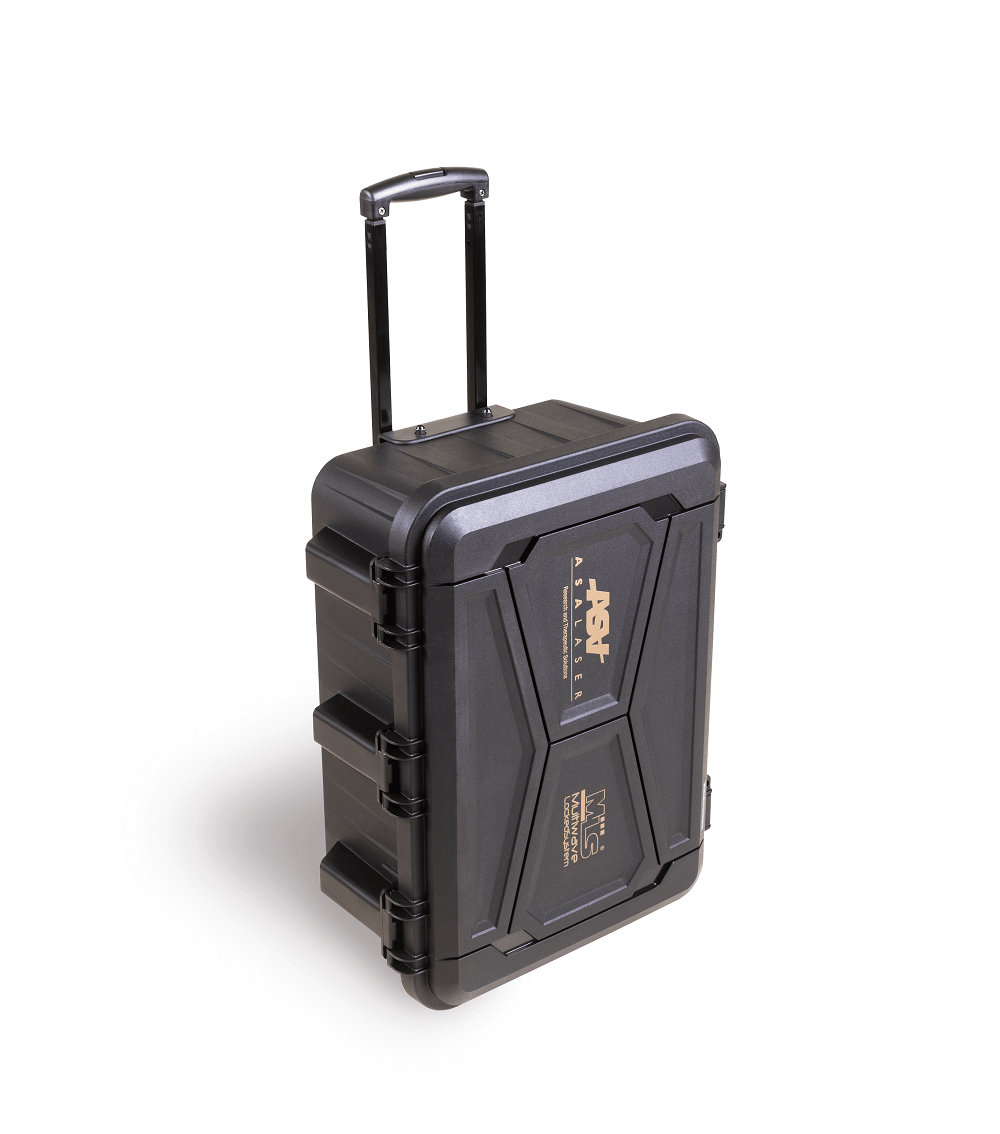

  • Unit carrying case
  • Shoulder strap for portable use
  • Lens case attachable to the shoulder strap

Dimensions and weight

  • 35 x 30 x 15 cm; 4 kg (max)

Power supply

  • Lithium-ion battery
  • 100 - 240 V AC 50/60 Hz 51-68 VA external power supply unit

Optional accessories

  • Trolley with storage compartment:
    • 4 swivel wheels and self-locking system
    • 52 x 50 x 95 cm (L x P x H), 19 Kg
  • Battery kit:
    • exclusive charger
    • battery
    • connection cable
  • ø 5 cm (20 cm2) collimated lens for effective therapy from contact to 30 cm distance
M-VET laser device - Touchscreen
M-VET laser portable device
M-VET laser device - Trolley
M-VET laser device - dog treatment application
M-VET & ADI Design Index 2021
IDA Gold Medal for MVET user interface 2021
IDA Silver Medal for MVET corporate identity 2021
IDA Honorable Mention for MVET brand 2021
IDA Honorable Mention for MVET catalogue 2021
