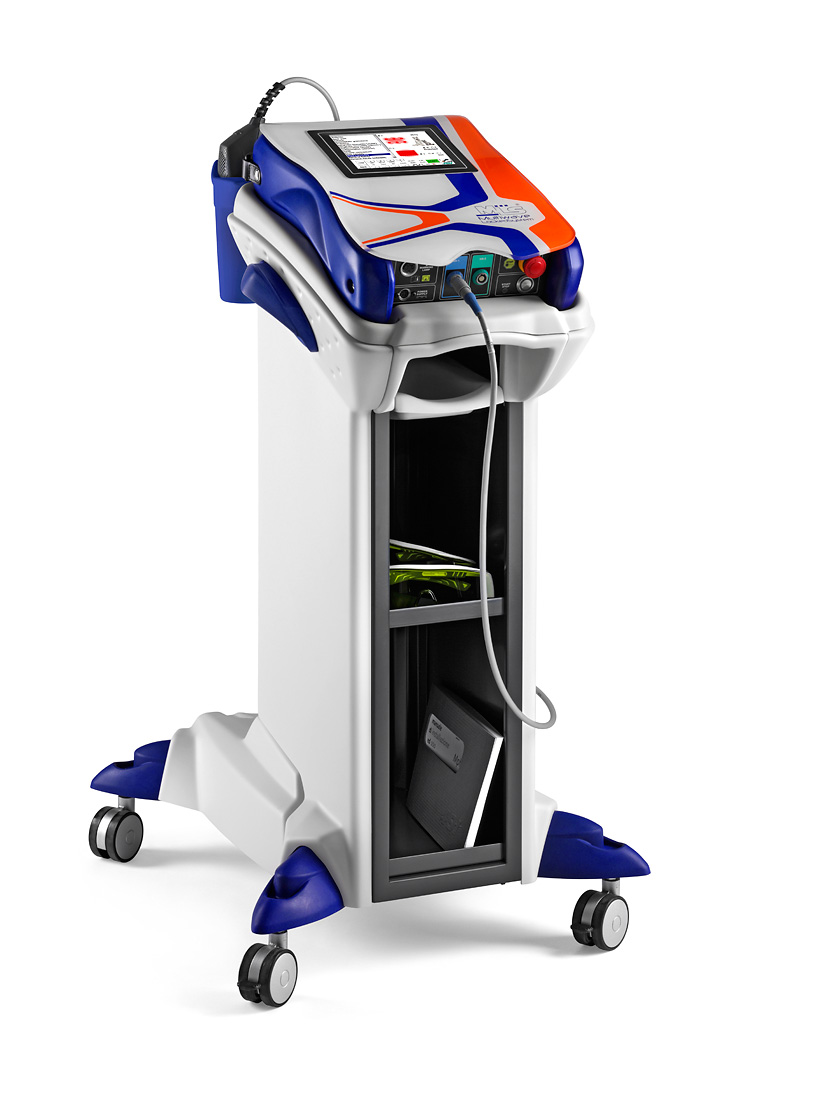

Mphi Vet Trolley Orange

The most complete solution for managing in-surgery treatment functionally


MLS® Laser Therapy devices, innovative veterinary products, mean quality and technological research which are translated into the practicality and effectiveness of their treatments. Mphi Trolley Vet Orange is the complete realisation of these principles thanks to its ergonomic trolley which houses the accessories, the advanced user interface with backlit graphical touch-screen display and new software dedicated to cats, dogs, equines and exotic animals, conceived to best meet operator needs.

A complete solution for managing daily use practically, Mphi trolley Vet Orange brings together the intrinsic qualities of Mphi Trolley Vet (portability, contained size and weight) and a significant added value: MLS® sources with peak power of 75 W and average power of 1.2 W.



Technical Characteristics

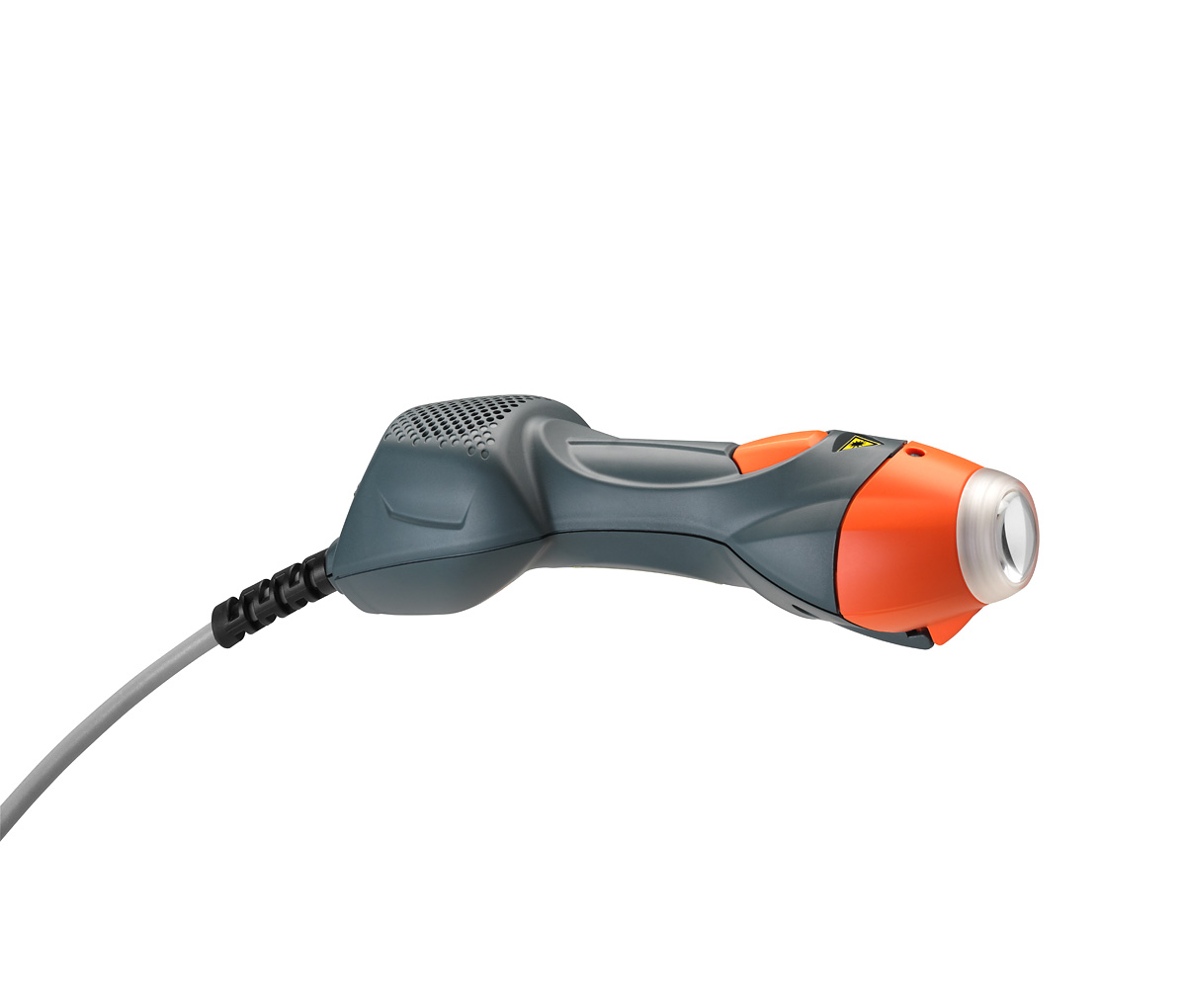

  • Handpiece with optical group composed of 1 MLS® source - power up to 1.2 W - Peak Power 75 W
    Target Area Ø 2 cm highlighted by high-efficiency red light LEDs

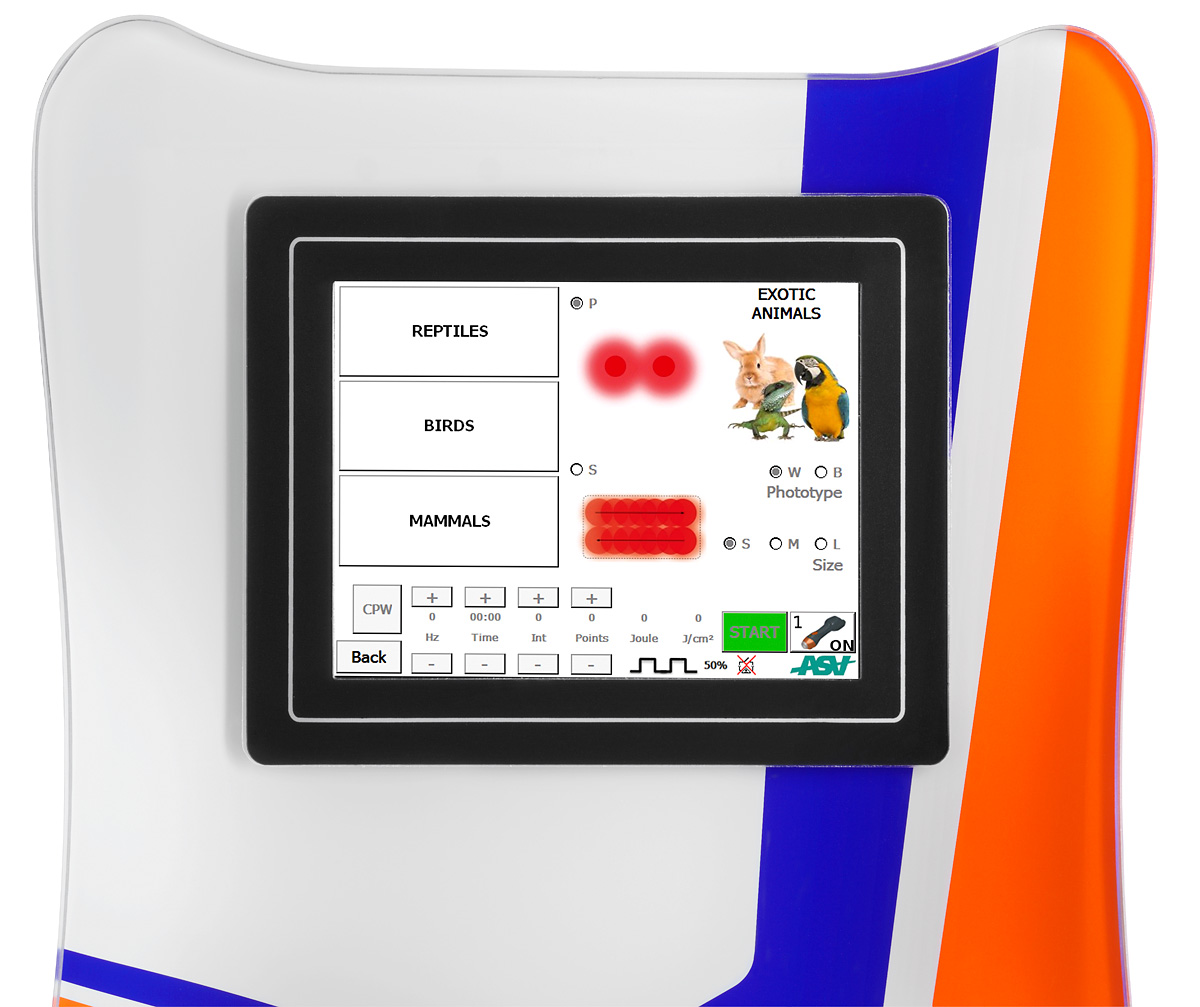

  • High resolution LCD colour touch screen user interface
  • Simultaneous management of two independent channels
  • 20 pre-settled programs for Dogs and Cats
  • 21 pre-settled programs for Equines
  • 41 pre-settled programs for Exotic Animals parted in Reptiles, Birds and Mammals
  • Program section for Laser puncture
  • Program section for Intraoral pathologies
  • Possibility to customize every treatment parameter
  • Personal Area to save custom protocols
  • MLS® modulation in CPW and FPW mode (Synchronized emissions of Continuous Pulsed Waves and Frequenced Pulsed Waves)
  • Modulation frequency from 1 to 2000 Hz with 1 Hz steps
  • Power level 25%, 50%, 75% and 100%
  • Variable or fixed duty cycle
  • Treatment duration from 1” to 99’59” with 1” steps
  • Automatic calculation of the emitted energy according to the settled parameters

Alarms and safety features

  • Laser emission warning light
  • Interlock
  • Acoustic signal selectable by operator
  • Date and time
  • Password to operate the device
  • Language option
  • Ready to be connected to the remote Laser emission signalling device

Included Accessories

  • Unit carrying trolley
  • Laser puncture kit
  • Light guide for Intraoral Pathology Treatment
  • N° 2 Laser Safety Goggles
  • Unit carrying case
  • Table handpiece holder
  • Shoulder strap for portable use

Size and weight

  • 63 x 54 x 85 cm; 20 kg

Power supply

  • Lithium polymer battery
  • External power supply 18Vdc 50VA

Optional accessories

  • Multidiode applicator Charlie Orange
